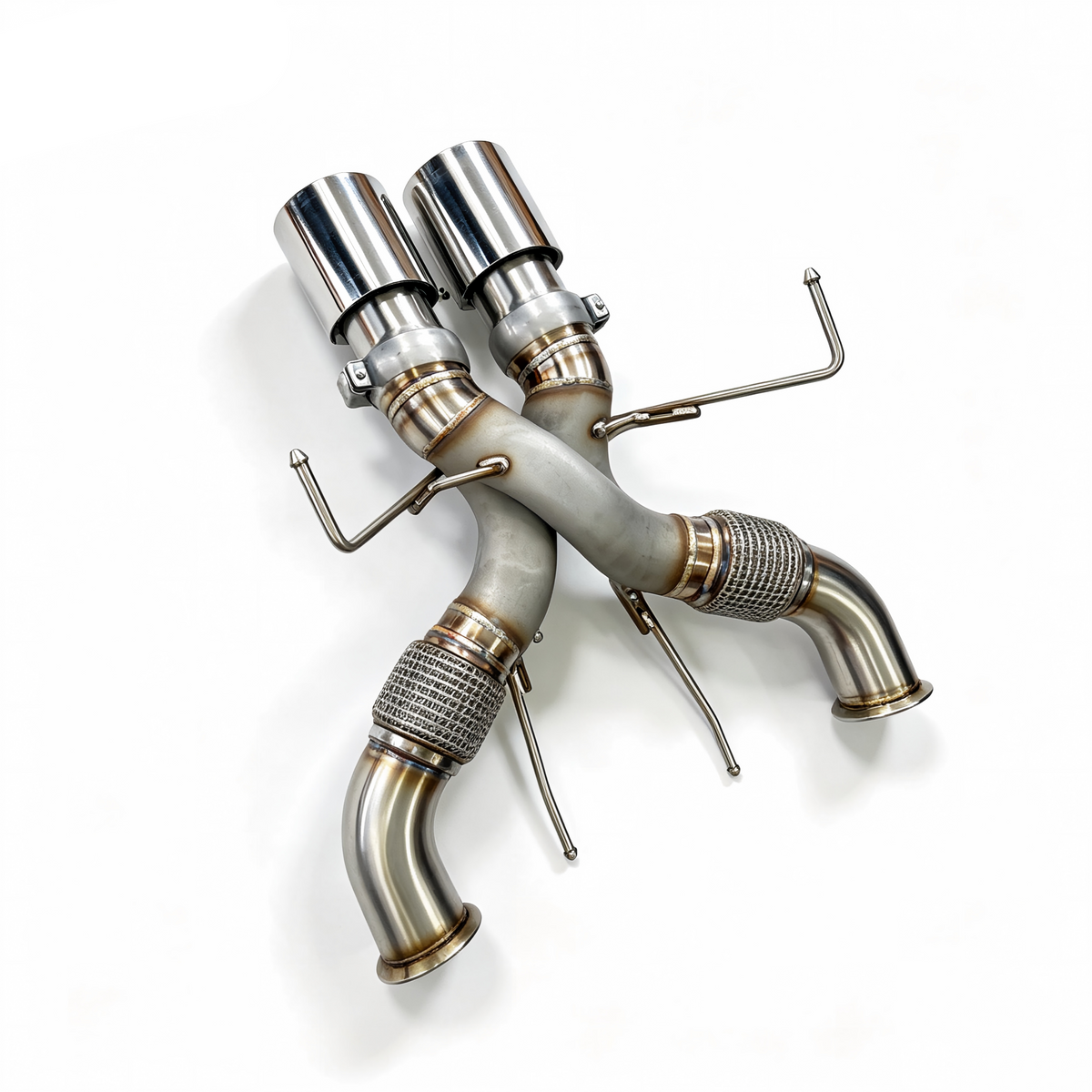

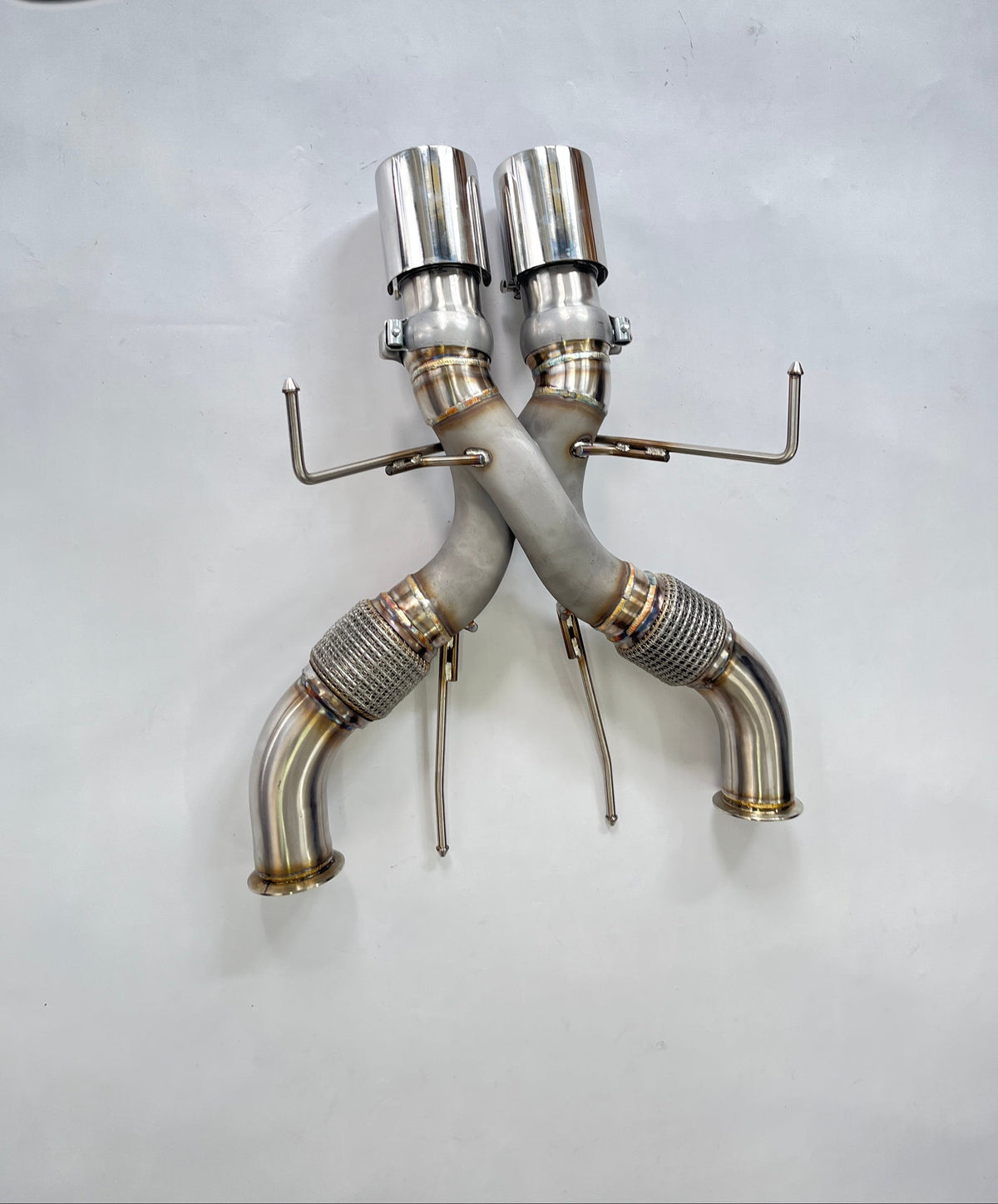

McLaren 750s Stainless Steel Z Pipe Exhaust

The 750S makes a 4.0-litre twin-turbo V8 sound like a 4.0-litre twin-turbo V8 — which is to say, muted. Between the turbochargers and the top-exit tailpipes sits a heavy factory silencer whose job is meeting drive-by noise regulations, and it does that job well. It is also the single largest restriction and the single heaviest component in the rear of the exhaust path.

This Z-pipe replaces that section outright. In its place goes a pair of mandrel-bent T304 stainless tubes that carry exhaust gas from the cat-back connection straight to the tailpipes on the shortest, smoothest route the chassis allows — the tight double-bend routing that gives the part its name. The result is a harder, more mechanical top end, a far more pronounced turbo and wastegate character, and an appreciable drop in unsprung-adjacent rear mass.

It bolts to the factory flanges. It does not touch the catalytic converters, the primary catalyst housings, or any engine management hardware. Nothing needs to be cut, welded, or tuned.

Key Features

T304 stainless steel throughout Chosen for its chromium and nickel content, T304 resists the corrosion and salt pitting that attacks lesser 409-grade tubing. It also holds its finish rather than going dull brown after a few heat cycles.

Mandrel-bent, not crush-bent Every bend is formed over an internal mandrel so tube diameter stays constant through the radius. Crush bending pinches the tube at each turn, and on a short pipe with this many direction changes, those restrictions compound.

TIG-welded and back-purged All joints are TIG-welded by hand and back-purged with argon, leaving clean internal weld roots rather than the rough sugared slag that disrupts flow and becomes a corrosion initiation site.

Substantial weight reduction The factory rear silencer is a dense, heavily baffled assembly. Removing it takes meaningful mass out of the very back of the car, behind the rear axle line — the most sensitive position on the vehicle for rotational inertia and yaw response. (Insert your verified before/after figures here; this claim should be backed by your own scale data.)

Retains factory valve function The system is designed to work with the car's active exhaust valve control. Normal, Sport, and Track modes continue to behave as intended, with the character difference between them preserved — and amplified.

Direct bolt-on fitment Reverse-engineered from a factory 750S exhaust and test-fitted on a physical car. Uses OEM flange positions, OEM hangers, and OEM clamp geometry. No modification to the rear clam, diffuser, heat shielding, or engine bay.

No tune required The part sits downstream of all sensors that influence fueling. No ECU flash, no check engine light, no long-term fuel trim drift, no cold-start fault codes.

Sound Character

The 750S is naturally a flat-plane-adjacent, hard-edged V8 wrapped in turbochargers, and the factory silencer hides most of that. With the Z-pipe fitted:

• Idle and low load — deeper and fuller, with more presence at the tailpipes, but still civil
• Part throttle, 2,000–4,000 rpm — the range where the difference is most audible day to day
• Wide-open throttle above 5,000 rpm — significantly louder, harder, more metallic, with the induction and turbo noise no longer buried
• Overrun and lift — clearly audible turbo spool, wastegate flutter, and exhaust decel character

Buyers should understand this is a meaningful volume increase, not a subtle one. If your priority is added tone without added decibels, a resonated variant is the better choice — see options below.

Configuration Options

Cabin Drone

At steady cruise between roughly 2,200 and 2,800 rpm, straight-through systems on this engine platform commonly produce a resonance that is fatiguing on long drives. Our resonated version specifically targets that band. If the car is used regularly for touring rather than weekend and track duty, order the resonated version. (Verify this rpm window against your own testing before publishing.)

Fitment

• Vehicle: McLaren 750S
• Body styles: Coupé and Spider
• Model years: 2024 onward
• Engine: 4.0L M840T twin-turbo V8
• Position: Rear mid-pipe / silencer section
• Replaces: OEM rear silencer assembly (insert factory part number here)

Not compatible with: McLaren 720S, 765LT, Artura, GT, 570S, or 600LT. Despite the platform similarity, the 750S rear exhaust routing and mounting differ from the 720S — do not cross-fit.

Send your VIN before ordering if your car has existing aftermarket exhaust components, a modified rear clam, or a non-standard diffuser.

What's Included

• Z-pipe assembly
• Replacement flange gaskets and hardware
• Installation instructions
• Certificate of authenticity and batch record

Retain your factory silencer. It is required for a return to stock and is worth a substantial amount at resale.

Installation

Installation requires a lift and rear clam access. Estimated shop time is [insert hours] for a technician familiar with the platform.

We strongly recommend installation by a McLaren-authorized technician or a specialist exotic shop. The rear clam on this car is expensive and easily damaged, and torque sequences on the exhaust flanges matter. Damage or leaks resulting from improper installation are not covered under warranty.
